How to install Hadoop in Ubuntu(16.04)

on
Hello , today we will see how to install Hadoop on Ubuntu(16.04).



Step 1 :

  • In order to install Hadoop you need to first install java .
  •  Open the Terminal and run  : sudo apt-get update (the packages will be updated by this command).
  • Java Installation : sudo apt-get install default-jdk ( This will download and install java).
  • To check whether java is installed successfully : java -version

                                                              (Succesfully installed java)


Step 2 :

  • Create a group : sudo addgroup hadoop
  • Add a user : sudo adduser --ingroup hadoop huser ( After this command enter new password         and new values for fullname , room number etc. )
  •  Now make 'huser' as root user by this command : sudo adduser huser sudo

 Step 3 :

  • Install openssh server: sudo apt-get install openssh-server
  •  Login as 'huser' : su - huser ( now 'huser' will be logged as root user)
  • To create a secure key using RSA : ssh-keygen -t rsa -P "" ( Press Enter after the message :                       'Enter  file in which to save the key')

Step 4 :

  • Adding key file to authorized keys : cat $HOME/.ssh/id_rsa.pub >> $HOME/.ssh/authorized_keys

  • To check whether ssh key is installed properly : ssh localhost (type yes after executing)

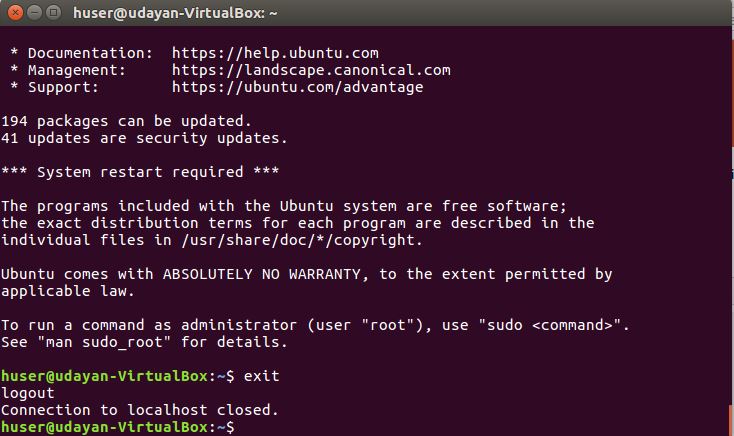

  • Logout from ssh : exit



 Step 5 :

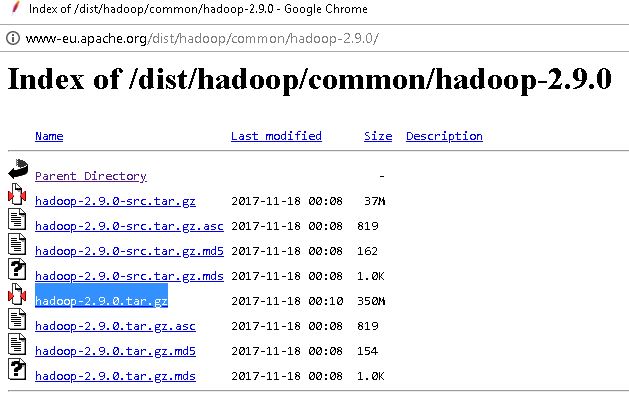

  • Place the downloaded zip file in home folder and cd into the home folder of main account on ubuntu and not 'huser'  : cd /(account name)/home

  • Extract the package : sudo tar -xvzf hadoop-2.9.0.tar.gz
  • Move the package to user local path : sudo mv hadoop-2.9.0 /usr/local/hadoop
  • To give ownership of usr/local to 'huser' : sudo chown -R huser /usr/local





Step 6 :


  • Now we have to edit some xml files.

              1).bashrc = Open bashrc file by typing : sudo nano ~/.bashrc
                  Copy the commands given below to the end of the file and press Ctrl+O , Enter(Return) then Ctrl+X.
                  The commands will be written and you will be back to original terminal.

                   export JAVA_HOME=/usr/lib/jvm/java-8-openjdk-amd64
        export HADOOP_HOME=/usr/local/hadoop
        export PATH=$PATH:$HADOOP_HOME/bin
        export PATH=$PATH:$HADOOP_HOME/sbin
        export HADOOP_MAPRED_HOME=$HADOOP_HOME
        export HADOOP_COMMON_HOME=$HADOOP_HOME
        export HADOOP_HDFS_HOME=$HADOOP_HOME
        export YARN_HOME=$HADOOP_HOMEexport                            export HADOOP_COMMON_LIB_NATIVE_DIR=$HADOOP_HOME/lib/native
        export HADOOP_OPTS="-Djava.library.path=$HADOOP_HOME/lib"

                 Enter this command after successfully writting bashrc : source ~/.bashrc


                 2)Now open hadoop-env.sh file by typing : sudo gedit /usr/local/hadoop/etc/hadoop/hadoop- env.sh
                   A File will be opened , replace the export JAVA_HOME command shown in the image with :



      export JAVA_HOME=/usr/lib/jvm/java-8-openjdk-amd64

                  3)Editing configuration files :

                       I )core-site.xml
                            Enter command on terminal : sudo gedit /usr/local/hadoop/etc/hadoop/core-site.xml
                            A Text editor file will be opened . Paste the code given below , in the file between the configuration tag and save it.
                                 <property>
                     <name>fs.default.name</name>
                     <value>hdfs://localhost:9000</value>
                   </property>

                      II )hdfs-site.xml
                       Enter command on terminal : sudo gedit /usr/local/hadoop/etc/hadoop/hdfs-site.xml                                      A Text editor file will be opened . Paste the code given below , in the file between the configuration tag and save it

                              <property>
                     <name>dfs.replication</name>
                     <value>1</value>
                  </property>
                  <property>
                     <name>dfs.namenode.name.dir</name>
         <value>file:/usr/local/hadoop_tmp/hdfs/namenode</value>
                  </property>
                  <property>
                     <name>dfs.datanode.data.dir</name>
          <value>file:/usr/local/hadoop_tmp/hdfs/datanode</value>
                  </property>


                      III ) yarn-site.xml
                          Enter command on terminal : sudo gedit /usr/local/hadoop/etc/hadoop/yarn-site.xml                                     A Text editor file will be opened . Paste the code given below , in the file between the configuration tag and save it
                   <property>
                      <name>yarn.nodemanager.aux-services</name>
                      <value>mapreduce_shuffle</value>
                   </property>
                   <property>
      <name>yarn.nodemanager.auxservices.mapreduce.shuffle.class
                   </name>
      <value>org.apache.hadoop.mapred.ShuffleHandler</value>
                   </property>

                    IV ) mapred-site.xml
                            This is a bit different than the above xml files.First we need to rename mapred site.xml.template as mapred-site.xml .To do this execute this command on terminal :

                            sudo cp /usr/local/hadoop/etc/hadoop/mapred-site.xml.template /usr/local/hadoop/etc/hadoop/mapred-site.xml


 Now we will edit the file  : sudo gedit /usr/local/hadoop/etc/hadoop/mapred-site.xml
                           Paste the command given below and save the file
                                        <property>
                    <name>mapreduce.framework.name</name>
                    <value>yarn</value>
                  </property>

Step 7 :

  • Creating a directory for hadoop to process HDFS  : sudo mkdir -p /usr/local/hadoop_tmp
  • Creating a namenode inside parent directory ( hadoop_tmp) : sudo mkdir -p /usr/local/hadoop_tmp/namenode
  • Creating datanode :  sudo mkdir -p /usr/local/hadoop_tmp/datanode
  • Changing owner for hadoop_tmp directory as 'huser'  :                                                                                          sudo chown -R huser /usr/local/hadoop_tmp



Step 8 :

  • Now we need to format name node as 'huser' :

                 cd
                 hdfs namenode -format

Step 9 :

  • Let's start dfs by executing following command

                 start-dfs.sh

  •  Start yarn

                 start-yarn.sh

Step 10 :

  • Checking whether hadoop is installed properly :jps
  •   If hadoop is installed successfully you will see all the five files as shown in the image.



 Step 11 :

  • Finally open browser and type localhost:50070 in the url section. Hadoop platform is displayed as below. You have successfully installed hadoop on ubuntu.
